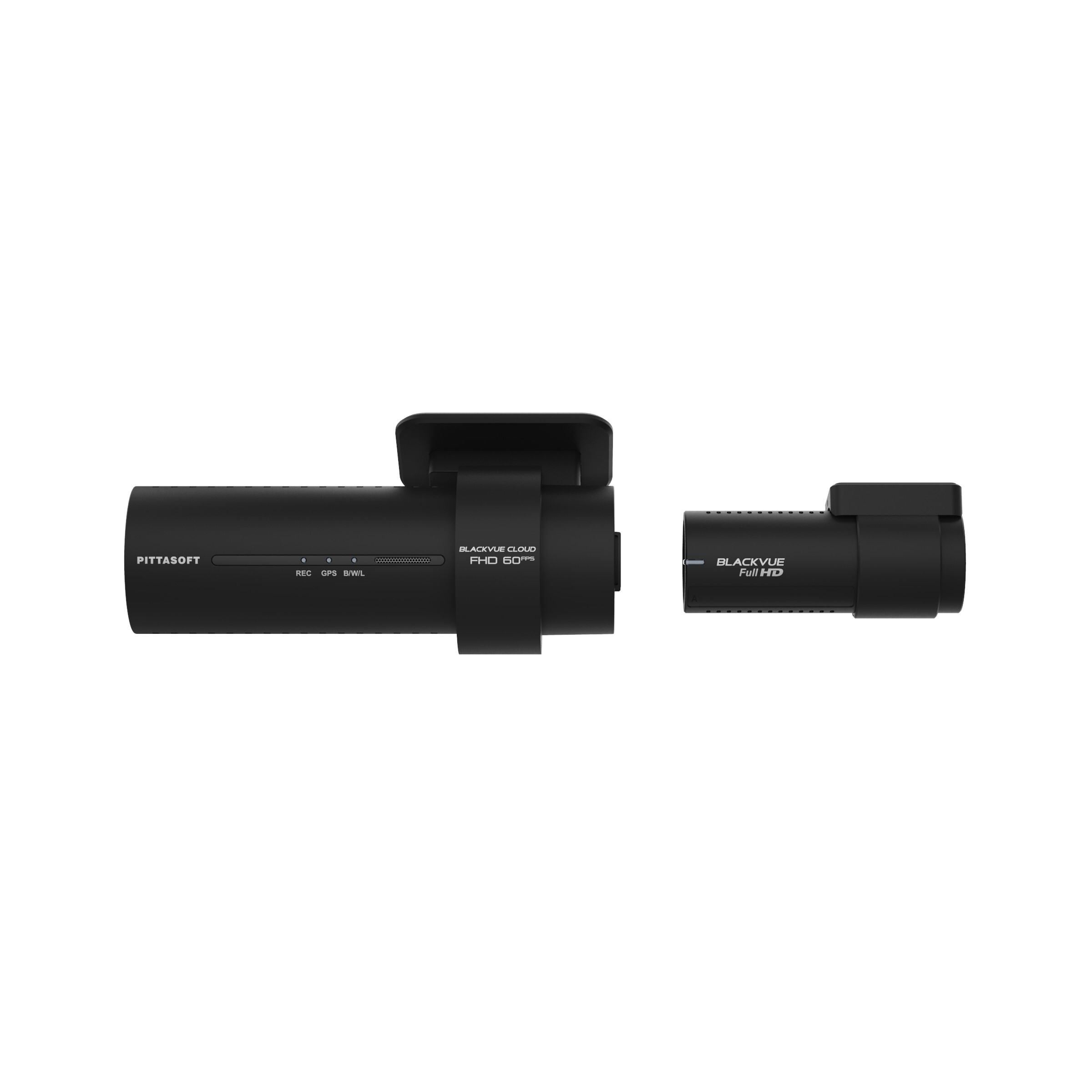

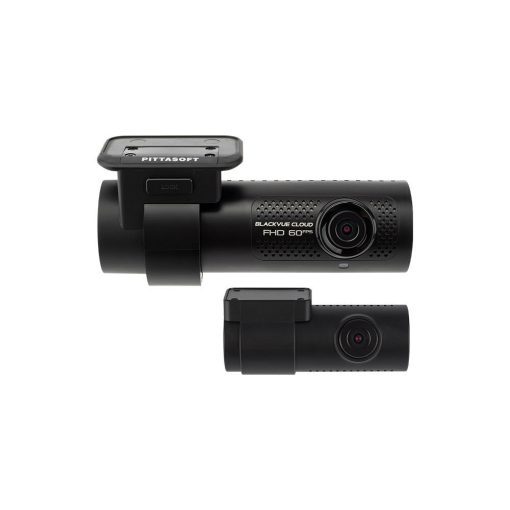

BlackVue DR770X-2CH – Reliable and Connected Dashcam
Dual-Channel Full HD Cloud Dashcam
The BlackVue DR770X-2CH is a dual-channel Cloud dashcams provide clear videos day and night. The Plus Series improves further on the ability to capture detail in the most contrasted scenes.
The DR770X-2CH is a dual-channel dashcam with BlackVue Cloud connectivity.
Both front and rear cameras feature Full HD Sony STARVIS™ image sensors for best image quality under any light.
This stealthy dashcam also packs built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi router or optional USB plug-in LTE module.
- Front camera with Full HD (1920 x1080) @ 60FPS
- Rear camera with Full HD (1920 x1080) @ 30FPS
- Reduced motion blur with high frame rate @60FPS
- 2.1M Pixels front SONY Starvis image sensor with Night Vision
- 139º wide view angle
- WiFi built-in
- Cloud service compatible
- Adaptive Format Free
- Scheduled Reboot
- Support up to 256GB microSD card
- Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
- Support optional LTE Module for Cloud Connectivity
- Support Native Parking Mode (hardwiring cable included)
- Seamless Pairing features for effortless setup.
- Touch sensors triggers manual recording depending on firmware settings.
What’s Included?
- Front camera
- Rear camera
- Cigarette lighter power cable (optional)
- Hardwiring power cable
- microSD Card
- microSD Card reader
- Rear camera connection cable (6m / 19.68ft)
- Spare mount sticky pads for the Mounting Brackets
- Cable clips(8 EA)
- Pry tool
- Quick start guide
Technical Specs
| Model Name | DR770X-2CH |
| Type | 2 Channels (front and rear camera) |
| Highlights | Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (optional) |
| Product Dimensions | Front: W 118.5 mm x H 36 mm /104 g Rear: W 67.4 mm x H 25 mm / 25 g |
| Rear Camera Connection | Coaxial cable |
| Memory support | MicroSD card up to 256GB |
| Recording Mode | Normal recording Event recording (when impact is detected in normal and parking mode) Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode | Yes (with 3-wire hardwiring cable included) using power from car battery or optional Cellink Battery is fully recommended. |
| Parking Mode Event Voice Notifications | Yes |
| Imaging Sensor | Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1M Pixel) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate | Front: Full HD (1920 x 1080) @60fps Rear: Full HD (1920 x 1080) @30fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps |
| Format Free | Yes (Adaptive) |
| Event File Overwrite Protection | Yes (up to 50) |
| SD Card Failure Alert | Yes |
| Scheduled Reboot | Yes |
| Video File Extension | MP4 |
| WiFi | Built-in (802.11 b.g.n) |
| Cloud Compatible | Yes |
| GPS | Built-in (Dual Band: GPS, GLONASS) |
| Microphone | Buit-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |
| Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.. |
| Operation Temperature | -20℃ – 80℃ |
| Storage Temperature | -20℃ – 80℃ |
| High Temp Cut Off | Approx. 80℃ |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode: ~4.56W (Avg. 380mA / 12V when GPS “On” 2CH) Parking Mode:~3.60W (Avg. 300mA / 12V when GPS “Off” 2CH) * Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Software | BlackVue Viewer * Windows 7 or higher and Mac Sierra OS X (10.12) or higher |
| Application | BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher) |
| LTE | External via Connectivity Module CM100LTE (optional) |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
Recording Time
| Model | Memory Capacity | Image Quality | Resolution (Front + Rear) |
| Full HD @ 60fps + Full HD @ 30 fps | |||
| DR770X-2CH | 32GB | Highest (Extreme) | 1 HR 50 MIN |
| Highest | 2 HR 50 MIN | ||
| High | 3 HR 40 MIN | ||
| Normal | 4 HR 40 MIN | ||
| 64GB | Highest (Extreme) | 3 HR 40 MIN | |
| Highest | 5 HR 40 MIN | ||
| High | 7 HR 20 MIN | ||
| Normal | 9 HR 20 MIN | ||
| 128GB |
Highest (Extreme) | 7 HR 20 MIN | |
| Highest | 11 HR 20 MIN | ||
| High | 14 HR 40 MIN | ||
| Normal | 18 HR 40 MIN | ||
| 256GB |
Highest (Extreme) | 14 HR 40 MIN | |
| Highest | 22 HR 40 MIN | ||
| High | 29 HR 20 MIN | ||
| Normal | 37 HR 20 MIN | ||
| Bitrate (Mbps) |
Highest (Extreme) | 25 + 10 | |
| Highest | 12 + 10 | ||
| High | 10 + 8 | ||
| Normal | 8 + 6 |
Package Info
WEIGHT: 1 kg
DIMENSIONS: 21 cm x 15 cm x 14 cm
MEMORY CAPACITY: 64 GB
